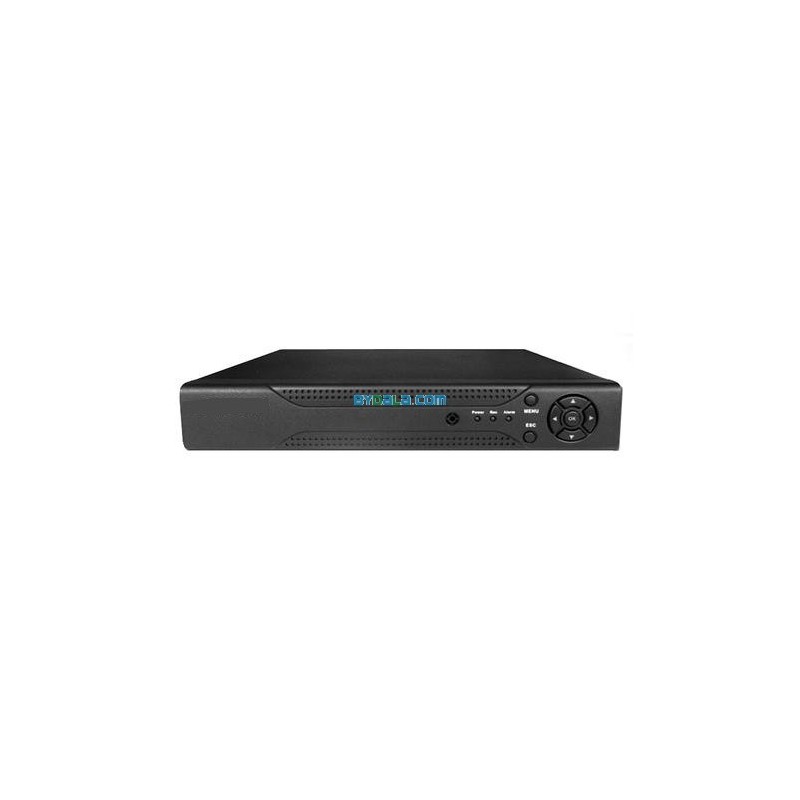

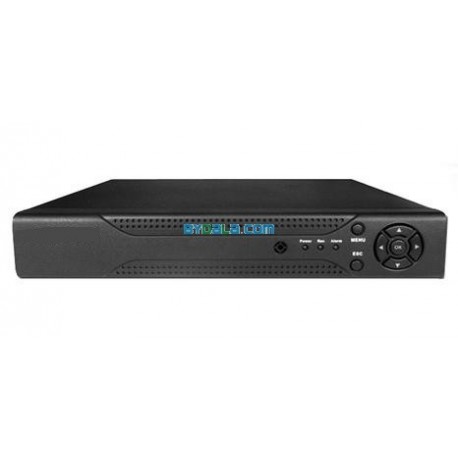

CCTV 4CH. DVR TTC-8104

CCTV 4CH. DVR TTC-8104

New product

• H.264 video compression
• Up to 4-ch video input
• WD1(PAL:960×576,NTSC:960×480) resolution real-time recording
• HDMI and VGA output at up to 1920×1080P resolution
• Dual-stream
• Gigabit network interfaces
• 4/8/16-ch synchronous playback

More details

10 Items

800 000KIP tax incl.

Add to wishlist

More info

CCTV 4CH. DVR

Model
TTC-8104
Video Input
4-ch
Video Output
HDMI/VGA output : 1-ch, resolution: 1080P: 1920x1080/60Hz; SXGA: 1280x1024/60Hz; 720P: 1280x720/60Hz; XGA: 1024x768/60Hz
Audio Input
4-ch, RCA (2.0 Vp-p, 1 K?)
Video/Audio Compression
H.264, G.711u
Alarm Input
4
Relay Output
1
Interface
1, RJ45 10M / 100M / 1000M Ethernet interface
1 RS-485 interface (For PTZ Control)
Hard Disk
SATA : 4 SATA interfaces
eSATA : 1 eSATA interfaces
Capacity : Up to 4TB capacity for each disk
USB Interface
3, USB 2.0 (2 Rear)
Power Supply
100 - 240 VAC / 5A
Working Environment
-10 ?C ~ + 55 ?C
10% ~ 90%
Two-way Talk
1-ch, RCA (2.0 Vp-p, 1 K?)
Video/Audio output
HDMI/VGA output :1-ch, resolution: 1080P: 1920x1080/60Hz; SXGA: 1280x1024/60Hz; 720P: 1280x720/60Hz; XGA: 1024x768/60Hz
CVBS output : 1-ch, BNC (1.0 Vp-p, 75 ?),
resolution: PAL: 704 X 576 , NTSC: 704 X 480
Encoding resolution WD1 / 4CIF / 2CIF / CIF / QCIF
Frame rate 25 fps (P) / 30 fps (N)
Video bit rate 32 Kbps ~ 3072 Kbps
Audio output 2-ch, RCA
Audio bit rate 64 Kbps
Dual-stream Support; sub-stream @ CIF/ QCIF
Stream type Video, Video & Audio
Synchronous playback 4-ch
