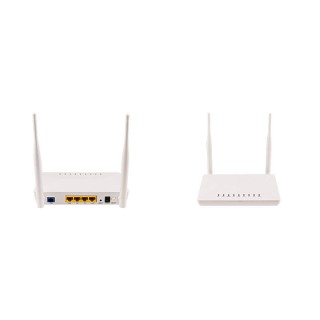

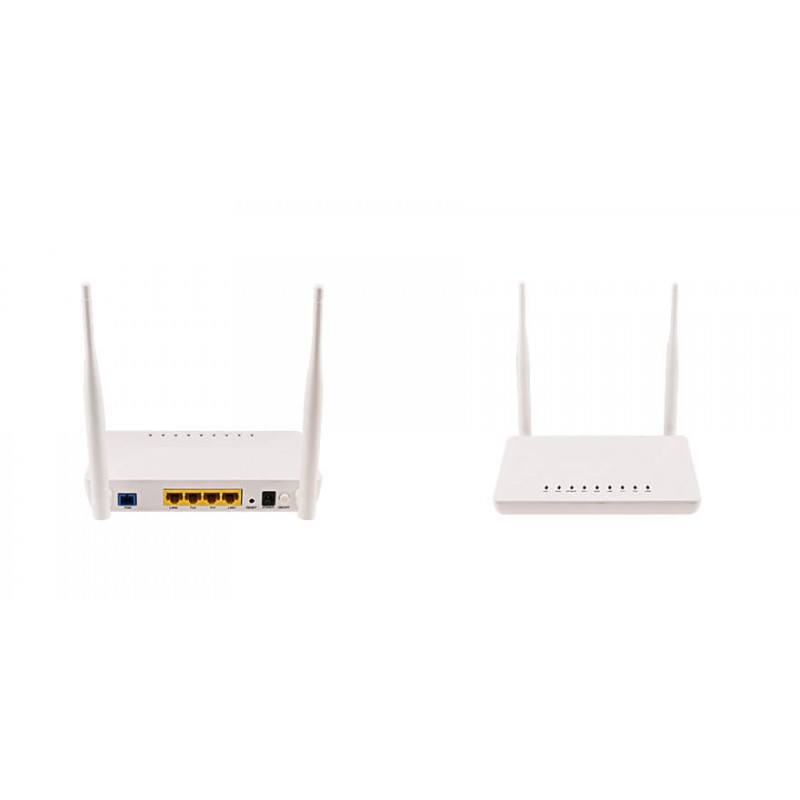

GPON/EPON 1GE+3FE+WIFI RL804GW

GPON/EPON 1GE+3FE+WIFI  RL804GW View larger

GPON/EPON 1GE+3FE+WIFI RL804GW

New product

Key Benifits and Features

  • ITUG.984 GPON compliant
  • Powerful QoS and IGMP Function
  • Multiple Management Options
  • Compatible with Main OLT Vendor

More details

10 Items

520 000KIP tax incl.

Add to wishlist

More info

GPON Interface
 Rate  Upsteam: 1.244Gbps Downsteam: 2.488Gbps
 Interface standard  ITU-T G.984.2/ITU-T G.984.3/ITU-TG.988 Class B+
 Launch power  Min: 0dBm   Max: +5dBm
 Sensitivity  -27dBm
 Input Power Overload  -8dBm
 Service Interface
 GPON Interface  1 GPON Port
 Data Interface  1 GE + 3 FE
 WIFI Interface  IEEE 802.11n/g/b/a wireless LAN
 Antenna Type  2 external antennas
 Environmental conditions
 Storage  temperature -10 to 70°C, rel. humidity 10–90% (non-condensing)
 Operation  temperature 0 to 45°C, rel. humidity 10–90% (non-condensing)
 Power Supply and Consumption
 Power Adaptor  Input: 100 to 240 V AC, 50/60 Hz; Output: 12 V, 0.5A
 Consumption  ≤5W
 Physical specifications
 Dimensions  180mm×120mm×31mm(L×W×H)
 Weight  0.24KG

 Key Feature Support on  RL804GW

 Features  RL804GW
 GPON Features  Compliant with ITU-T G.984 GPON standard
 FEC (Forward Error Correction) in both upstream and downstream
 QoS scheduling based on SP or WRR between GEM port and T-CONT
 Downstream multicast GEM port and broadcast GEM port
 Ethernet Feature  Support Auto-speed and MDI/MDIX auto detection
 Internal L2 switch
 Advanced data processing function,Such as VLAN label processing, flow classification
 Gateway Feature  WAN support Router and Bridge mode
 Router mode supports PPPoE/DHCP/ static IP
 WAN support Internet、VoIP、IPTV、TR069
 LAN supports DHCP and static IP
 Support NAT and NAPT
 WIFI Feature  300 Mbps on 2.4 GHz
 IEEE 802.11 n/g/b/a wireless LAN
 2.4 GHz band: 2400 – 2483.5 MHz
 WEP、WPA-PSK、WPA2-PSK and other encryption
 OAM Feature  Standard OMCI (the embedded operations channel)compliant with ITU-T G.988
 Compliant with TR-069 standard
 Compliant with TR-098、TR-140 terminal integrated management interface
 Alarm reporting, performance monitoring
