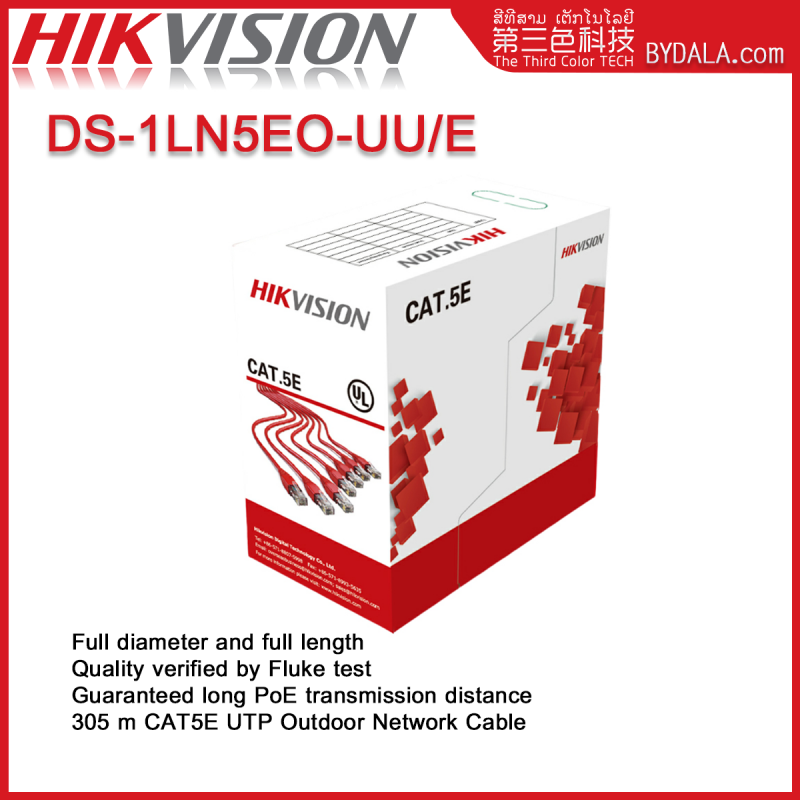

HIKVISION DS-1LN5EO-UU/E | 305 m CAT5E UTP Network Cable

Home > >HIKVISION DS-1LN5EO-UU/E | 305 m CAT5E UTP Network Cable
HIKVISION DS-1LN5EO-UU/E | 305 m CAT5E UTP Network Cable View larger

HIKVISION DS-1LN5EO-UU/E | 305 m CAT5E UTP Network Cable

New product

  • Full diameter and full length
  • Quality verified by Fluke test
  • Guaranteed long PoE transmission distance
  • 305 m CAT5E UTP Outdoor Network Cable

More details

99 Items

2 000 000KIP tax incl.

Add to wishlist

More info

  • General
  • Core Color1 White- Blue /Blue 2 White-Orange /Orange 3 White- Green /Green 4 White- Brown /Brown
  • PackingWooden Tray & Carton
  • Carton DimensionPer request
  • Packing Length(305±0.5)m
  • Rip-CordYes
  • Drain WireNo
  • Sheath Physical Properties

    Before Aging Tensile Strength (Mpa) ≥10 Elongation(%) ≥300

    Aging Period(℃×hrs) 100℃×24h×10d

    After Aging Tensile Strength(Mpa) ≥12.5 Elongation(%) ≥125

    Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks

  • Electrical Characteristics (20℃)

    1.0-100.0MHz Impedance(Ω) 100±15

    1.0-100.0MHz Delay Skew (ns/100m) ≤552

    DC Resistance(Ω/100m) max 9.5

    DC Conductor Resistance Unbalance(%) max 2.0

  • Conductor
  • MaterialSolid-Bare Copper Content 99.99%
  • Nom.O.D.(Mm)0.5±0.01
  • Insulation
  • MaterialHDPE
  • Diameter0.88±0.03mm
  • Sheath
  • Thickness0.55±0.03 mm
  • External O.D.5.0±0.3 mm
  • SurfaceClean, Frap, Satiation
  • MaterialPE
  • ColorBlack
  • Surface Printing
  • Letter Height2.8mm
  • ColorWhite
  • Print Error & Space≤±0.5%，1m
