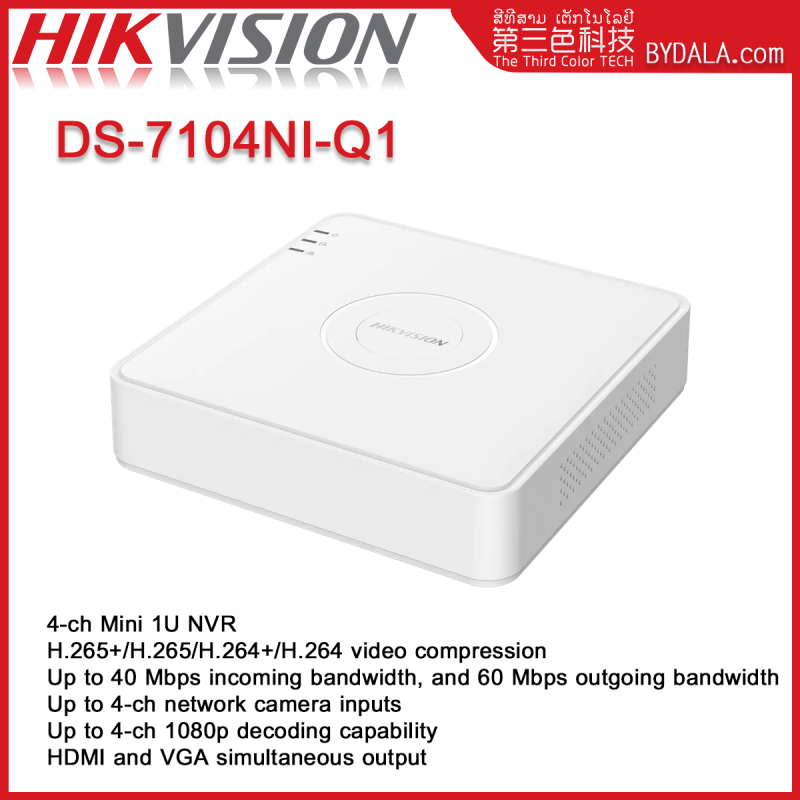

Hikvision DS-7104NI-Q1 4-ch Mini 1U NVR

Home > >>Hikvision DS-7104NI-Q1 4-ch Mini 1U NVR
Hikvision DS-7104NI-Q1 4-ch Mini 1U NVR View larger

Hikvision DS-7104NI-Q1 4-ch Mini 1U NVR

New product

  • H.265+/H.265/H.264+/H.264 video compression
  • Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
  • Up to 4-ch network camera inputs
  • Up to 4-ch 1080p decoding capability
  • HDMI and VGA simultaneous output

More details

99 Items

825 000KIP tax incl.

Add to wishlist

More info

  • Video And Audio
  • IP Video Input

    4-ch

    Up to 4 MP resolution

  • Incoming Bandwidth40 Mbps
  • Outgoing Bandwidth60 Mbps
  • HDMI Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Decoding
  • Decoding FormatH.265+/H.265/ H.264+/H.264
  • Recording Resolution6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous Playback4-ch
  • Decoding Capability4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
  • Stream TypeVideo, Video & Audio
  • Network
  • Remote Connection16
  • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
  • Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 6TB capacity for each disk
  • Alarm In/OutN/A
  • USB InterfaceRear panel: 2 × USB 2.0
  • General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 10 W
  • Working Temperature-10 to +55º C (+14 to +131º F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)200 × 200 × 48 mm (7.9" × 8.1" × 1.9")
  • Weight≤ 1 kg (2.2 lb)
  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN50130-4, EN 61000-3-2,EN 61000-3-3

Reviews

No customer reviews for the moment.

Write a review

Hikvision DS-7104NI-Q1 4-ch Mini 1U NVR

Hikvision DS-7104NI-Q1 4-ch Mini 1U NVR

  • H.265+/H.265/H.264+/H.264 video compression
  • Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
  • Up to 4-ch network camera inputs
  • Up to 4-ch 1080p decoding capability
  • HDMI and VGA simultaneous output
