CCTV 16CH. NVR TTC-8116

Home > >>CCTV 16CH. NVR TTC-8116

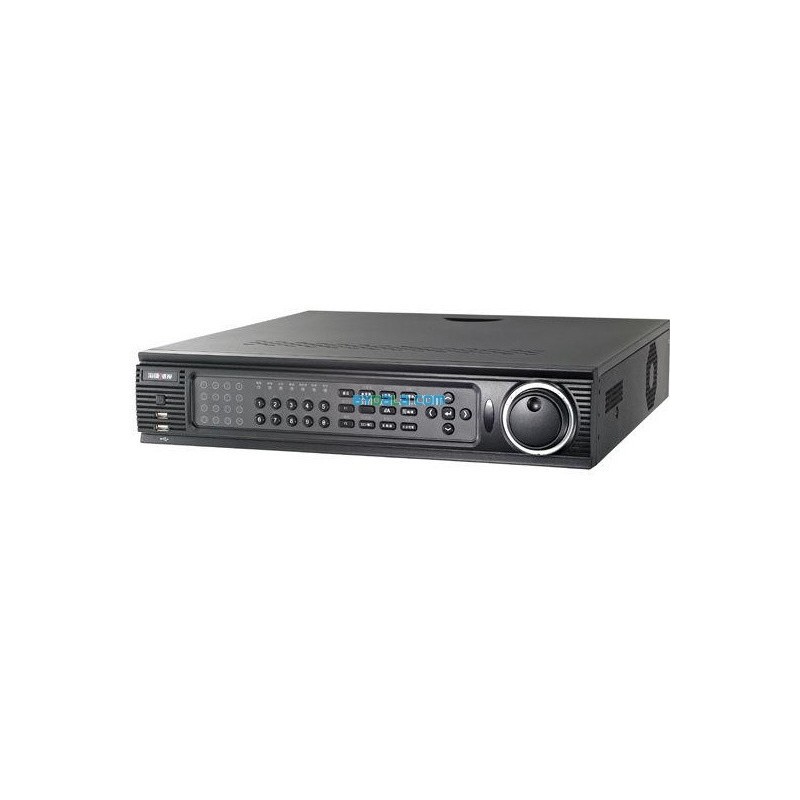

CCTV 16CH. NVR TTC-8116 View larger

CCTV 16CH. NVR TTC-8116

New product

• 16 channelwith 1080P realtime live view
• H.264/MJPEG dual codec decoding
• Max 200Mbps incoming bandwidth
• Up to 5Mp resolution preview&playback

More details

10 Items

1 820 000KIP tax incl.

Add to wishlist

More info

CCTV 16CH. NVR

Model
TTC-8116
Main Processor
Dual-core embedded processor
Operating System
Embedded LINUX
Video Input
16 channel
Resolution
1920×1080, 1280×1024, 1280×720, 1024×768
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video/Audio Compression
H.264/MJPEG
Image Resolution
5Mp(2560×1920)/3Mp(2048×1536)/ 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480)
Bit Rate
48~8192Kb/s
Recording Mode
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Recording Interval
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Trigger Events
Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Motion Detection
Motion Detection, MD Zones: 396(22× 18), Video Loss & Camera Blank
Alarm Input
4 channel
Alarm Output : 2 channel
Search Mode
Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Functions
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode
USB Device/Network/Internal SATA Device
Interface
1 HDMI, 1 VGA
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Hard Disk
2 SATA ports, up to 8TB, Raid (Redundancy)
USB Interface
2 ports (1 Rear USB3.0, 1 Front USB2.0)
RS232
1 port, For PC communication & Keyboard
RS485
1 port For PTZ control
Power Supply
AC 100~240V, 50/60 Hz
Power Consumption
60W (without HDD)
PoE: Max.25.5W for single port
Working Environment
-10°C ~+55°C / 10%~90%RH / 86~106kpa
Dimension
1U, 375mm×285mm×50mm
Weight
2.0KG(without HDD)
Display Split
1/4/8/9/16
Smart Phone
iPhone, iPad, Android, Windows Phone
User Access
128 users
Two-way Talk
1 channel Input, 1 channel Output, BNC
Sync Playback
1/4/9/16
Ethernet
1 RJ-45 port (10/100M/1000M)
8 ports (IEEE802.3af)

Reviews

No customer reviews for the moment.

Write a review

CCTV 16CH. NVR TTC-8116

CCTV 16CH. NVR TTC-8116

• 16 channelwith 1080P realtime live view
• H.264/MJPEG dual codec decoding
• Max 200Mbps incoming bandwidth
• Up to 5Mp resolution preview&playback
